NASA Approves 2018 Launch of Mars InSight Mission

NASA has set a new launch opportunity, beginning May 5, 2018, for the InSight mission to Mars. InSight is the first mission dedicated to investigating the deep interior of Mars. The findings will advance understanding of how all rocky planets, including Earth, formed and evolved. This artist's concept depicts the InSight lander on Mars after the lander's robotic arm has deployed a seismometer and a heat probe directly onto the ground.

NASA is moving forward with a spring 2018 launch of its InSight mission to study the deep interior of Mars, following final approval this week by the agency’s Science Mission Directorate.

The Interior Exploration using Seismic Investigations, Geodesy and Heat Transport (InSight) mission was originally scheduled to launch in March of this year, but NASA suspended launch preparations in December due to a vacuum leak in its prime science instrument, the Seismic Experiment for Interior Structure (SEIS).

The new launch period for the mission begins May 5, 2018, with a Mars landing scheduled for Nov. 26, 2018. The next launch opportunity is driven by orbital dynamics, so 2018 is the soonest the lander can be on its way.

“Our robotic scientific explorers such as InSight are paving the way toward an ambitious journey to send humans to the Red Planet,” said Geoff Yoder, acting associate administrator for NASA’s Science Mission Directorate, in Washington. “It’s gratifying that we are moving forward with this important mission to help us better understand the origins of Mars and all the rocky planets, including Earth.”

The SEIS instrument -- designed to measure ground movements as small as half the radius of a hydrogen atom -- requires a perfect vacuum seal around its three main sensors in order to withstand harsh conditions on the Red Planet. Under what’s known as the mission “replan,” NASA’s Jet Propulsion Laboratory in Pasadena, California, will be responsible for redesigning, developing and qualifying the instrument's evacuated container and the electrical feedthroughs that failed previously. France's space agency, the Centre National d'Études Spatiales (CNES), will focus on developing and delivering the key sensors for SEIS, integration of the sensors into the container, and the final integration of the instrument onto the spacecraft.

The German Aerospace Center (DLR) is contributing the Heat Flow and Physical Properties Package (HP3) to InSight’s science payload.

NASA’s budget for InSight was $675 million. The instrument redesign and two-year delay add $153.8 million. The additional cost will not delay or cancel any current missions, though there may be fewer opportunities for new missions in future years, from fiscal years 2017-2020.

InSight’s primary goal is to help us understand how rocky planets formed and evolved. Jim Green, director of NASA’s Planetary Science Division, said, “We’ve concluded that a replanned InSight mission for launch in 2018 is the best approach to fulfill these long-sought, high-priority science objectives.”

CNES President Jean-Yves Le Gall added, "This confirmation of the launch plan for InSight is excellent news and an unparalleled opportunity to learn more about the internal structure of the Red Planet, which is currently of major interest to the international science community."

The InSight Project is managed by JPL for NASA's Science Mission Directorate, Washington. Lockheed Martin Space Systems, Denver, built the spacecraft. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Guy Webster
Jet Propulsion Laboratory, Pasadena, Calif.
818-354-6278
guy.webster@jpl.nasa.gov

Dwayne Brown / Laurie Cantillo
NASA Headquarters, Washington
202-358-1726 / 202-358-1077
dwayne.c.brown@nasa.gov / laura.l.cantillo@nasa.gov

Bron: https://mars.nasa.gov/news/nasa-approves-2018-launch-of-mars-insight-mission/

Een overzicht van de bouw van Insight

Deze missie stond eigenlijk gepland voor 2016, echter de NASA heeft deze toen uit moeten stellen. Derhalve zijn de eerste foto's ook uit 2015.
Hierbij een overzicht van Insight tot nu toe:

De landingsplaats is vastgesteld:

Landing Area Narrowed for 2016 InSight Mission to Mars

The process of selecting a site for NASA's next landing on Mars, planned for September 2016, has narrowed to four semifinalist sites located close together in the Elysium Planitia region of Mars. The mission known by the acronym InSight will study the Red Planet's interior, rather than surface features, to advance understanding of the processes that formed and shaped the rocky planets of the inner solar system, including Earth. The location of the cluster of semifinalist landing sites for InSight is indicated on this near-global topographic map of Mars, which also indicates landing sites of current and past NASA missions to the surface of Mars. The mission's full name is Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport.

The location of Elysium Planitia close to the Martian equator meets an engineering requirement for the stationary InSight lander to receive adequate solar irradiation year-round on its photovoltaic array. The location also meets an engineering constraint for low elevation, optimizing the amount of atmosphere the spacecraft can use for deceleration during its descent to the surface. The number of candidate landing sites for InSight was trimmed from 22 down to four in August 2013. This down-selection facilitates focusing the efforts to further evaluate the four sites. Cameras on NASA's Mars Reconnaissance Orbiter will be used to gather more information about them before the final selection.

The topographic map uses data from the Mars Orbiter Laser Altimeter on NASA's Mars Global Surveyor spacecraft. The color coding on this map indicates elevation relative to a reference datum, since Mars has no "sea level." The lowest elevations are presented as dark blue; the highest as white. The difference between green and orange in the color coding is about 2.5 miles (4 kilometers) vertically.

InSight will deploy a heat-flow probe designed to hammer itself 3 to 5 yards (or meters) deep and monitor heat coming from the planet's interior. The mission will also use a seismometer and radio science. The French space agency Centre National d'Etudes Spatiales, or CNES, and the German Aerospace Center, or DLR, are contributing instruments to the mission. Lockheed Martin Space Systems, Denver, is building the spacecraft.

InSight is part of NASA's Discovery Program of competitively selected solar system exploration missions with highly focused scientific goals. NASA's Marshall Space Flight Center in Huntsville, Ala., manages the Discovery Program for the agency's Science Mission Directorate in Washington. NASA's Jet Propulsion Laboratory, a division of the California Institute of Technology, Pasadena, manages InSight for the NASA Science Mission Directorate. For more information about InSight, visit: http://insight.jpl.nasa.gov .

Credit: NASA/JPL-Caltech




Solar-Array Deployment Test for InSight
Date: 30 Apr 2015

Engineers and technicians at Lockheed Martin Space Systems, Denver, run a test of deploying the solar arrays on NASA's InSight lander in this April 30, 2015 image.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016. It will study the deep interior of Mars to advance understanding of the early history of all rocky planets, including Earth.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin




InSight Lander in Assembly
Date: 15 Jan 2015

The Mars lander that NASA's InSight mission will use for investigating how rocky planets formed and evolved is being assembled by Lockheed Martin Space Systems, Denver. In this scene from January 2015, Lockheed Martin spacecraft specialists are working on the lander in a clean room.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin


InSight Cruise Stage and Lander in Assembly
Date: 15 Jan 2015

Spacecraft specialists in a clean room at Lockheed Martin Space Systems, Denver, are working on NASA's InSight spacecraft in this January 2015 scene from the mission's assembly and testing phase.

At center is the cruise stage, which will serve multiple functions during the flight from Earth to Mars. In the background is the InSight lander.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, will investigate the deep interior of Mars to gain information about how rocky planets, including Earth, formed and evolved. The mission is scheduled for launch from California in March 2016 and landing on Mars in September 2016.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin


Parachute Testing for NASA's InSight Mission
Date: 15 Feb 2015

This parachute testing for NASA's InSight mission to Mars was conducted inside the world's largest wind tunnel, at NASA Ames Research Center, Moffett Field, California, in February 2015.

The wind tunnel is 80 feet (24 meters) tall and 120 feet (37 meters) wide. It is part of the National Full-Scale Aerodynamics Complex, operated by the Arnold Engineering Development Center of the U.S. Air Force.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled to launch in March 2016 and land on Mars in September 2016. The lander will investigate the deep interior of Mars to gain information about how rocky planets, including Earth, formed and evolved.

Lockheed Martin Space Systems, Denver, is building the InSight spacecraft. The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin



InSight Lander in Mars-Surface Configuration
Date: 30 Apr 2015

The solar arrays on NASA's InSight lander are deployed in this test inside a clean room at Lockheed Martin Space Systems, Denver. This configuration is how the spacecraft will look on the surface of Mars. The image was taken on April 30, 2015.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016. It will study the deep interior of Mars to advance understanding of the early history of all rocky planets, including Earth.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin


Lowering Back Shell onto Stowed InSight Lander
Date: 29 Apr 2015

In this photo, the back shell of NASA's InSight spacecraft is being lowered onto the mission's lander, which is folded into its stowed configuration. The back shell and a heat shield form the aeroshell, which will protect the lander as the spacecraft plunges into the upper atmosphere of Mars. The photo was taken on April 29, 2015, in a spacecraft assembly clean room at Lockheed Martin Space Systems, Denver.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016. It will study the deep interior of Mars to advance understanding of the early history of all rocky planets, including Earth.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin



Lowering InSight's Cruise Stage onto Back Shell
Date: 29 Apr 2015

Spacecraft specialists at Lockheed Martin Space Systems, Denver, are preparing to attach the cruise stage of NASA's InSight spacecraft to the top of the spacecraft's back shell in this April 29, 2015, photo.

The cruise stage will serve multiple functions during the flight from Earth to Mars. It has its own solar arrays, thrusters and radio antennas. It will be jettisoned shortly before the spacecraft enters the Martian atmosphere.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016. It will study the deep interior of Mars to advance understanding of the early history of all rocky planets, including Earth.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin



Top View of InSight's Cruise Stage
Date: 29 Apr 2015

This photo shows the upper side of the cruise stage of NASA's InSight spacecraft as specialists at Lockheed Martin Space Systems, Denver, attach it to the spacecraft's back shell. The photo was taken on April 29, 2015.

The cruise stage will serve multiple functions during the flight from Earth to Mars. It has its own solar arrays, thrusters and radio antennas. It will be jettisoned shortly before the spacecraft enters the Martian atmosphere.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016. It will study the deep interior of Mars to advance understanding of the early history of all rocky planets, including Earth.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin


Installing the InSight Spacecraft's Parachute Cone
Date: 29 Apr 2015

In this photo, spacecraft specialists at Lockheed Martin Space Systems, Denver, are reaching up to guide lowering of the parachute cone for installation onto NASA's InSight spacecraft. The photo was taken on April 29, 2015.

InSight's parachute, stowed inside the cone, will provide deceleration in the Martian atmosphere. Its role will come after atmospheric friction with the spacecraft's heat shield provides initial deceleration and before thrusters on the lander provide final deceleration.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016. It will study the deep interior of Mars to advance understanding of the early history of all rocky planets, including Earth.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin


Turning the InSight Lander's Science Deck
Date: 29 Apr 2015

The science deck of NASA's InSight lander is being turned over in this April 29, 2015, photo from InSight assembly and testing operations inside a clean room at Lockheed Martin Space Systems, Denver. The large circular component on the deck is the protective covering to be placed over InSight's seismometer after the seismometer is placed directly onto the Martian ground.

InSight, for Interior Exploration Using Seismic Investigations, Geodesy and Heat Transport, is scheduled for launch in March 2016 and landing in September 2016. It will study the deep interior of Mars to advance understanding of the early history of all rocky planets, including Earth.

The InSight Project is managed by NASA's Jet Propulsion Laboratory, Pasadena, California, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin


Names-to-Mars Chip for InSight Spacecraft
Date: 17 Dec 2015

The dime-size microchip in this close-up image carries 826,923 names that will go to Mars on NASA's InSight lander. The image was taken in November 2015 inside a clean room at Lockheed Martin Space Systems, Denver, where the lander was built.

InSight, for Interior Exploration using Seismic Investigations, Geodesy and Heat Transport, will launch from Vandenberg Air Force Base, California, in March 2016 and land on Mars on Sept. 28, 2016. This is the first Mars mission dedicated to study the deep interior of Mars. Its findings will advance understanding of the early history of all rocky planets, including Earth.

The chip is affixed to the InSight lander deck and will remain on Mars forever.

Engineers at NASA's Jet Propulsion Laboratory, Pasadena, California, etched the names onto a silicon wafer or microchip. They used an electron beam machine at JPL that specializes in etching very tiny features (less than 1 micron, or less than one one-thousandth the width of a human hair). They use this machine to make high-precision microdevices in JPL's Microdevices Laboratory.

This technique was also used to write millions of names that were transported on Mars rovers and Orion's first test flight.

The InSight Project is managed by JPL, a division of the California Institute of Technology in Pasadena, for the NASA Science Mission Directorate, Washington. InSight is part of NASA's Discovery Program, which is managed by NASA's Marshall Space Flight Center in Huntsville, Alabama.

Credit: NASA/JPL-Caltech/Lockheed Martin


hipping InSight Mars Spacecraft to California for Launch
Date: 17 Dec 2015

A crate containing NASA's Mars-bound InSight spacecraft is loaded into a C-17 cargo aircraft at Buckley Air Force Base, Denver, for shipment to Vandenberg Air Force Base, California. The spacecraft, built by Lockheed Martin Space Systems, was shipped Dec. 16, 2015, for launch in March 2016.

Credit: NASA/JPL-Caltech/Lockheed Martin


Shipping InSight Mars Spacecraft to California for Launch
Date: 17 Dec 2015

A crate containing NASA's Mars-bound InSight spacecraft is loaded into a C-17 cargo aircraft at Buckley Air Force Base, Denver, for shipment to Vandenberg Air Force Base, California. The spacecraft, built by Lockheed Martin Space Systems, was shipped Dec. 16, 2015, for launch in March 2016.

Credit: NASA/JPL-Caltech/Lockheed Martin


Spacecraft Coming out of Protective Storage
Date: 28 Aug 2017

Members of the InSight mission's assembly, test and launch operations (ATLO) team remove the “birdcage” from NASA's InSight spacecraft, in this photo taken June 19, 2017, in a Lockheed Martin clean room facility in Littleton, Colorado. The birdcage is the inner layer of protective housing that shielded the spacecraft while in storage following a postponement of launch. It is made of a film that dissipates electrostatic conditions to protect the spacecraft from contamination.

The InSight mission (for Interior Exploration using Seismic Investigations, Geodesy and Heat Transport) is scheduled to launch in May 2018 and land on Mars Nov. 26, 2018. It will investigate processes that formed and shaped Mars and will help scientists better understand the evolution of our inner solar system's rocky planets, including Earth.

InSight is part of NASA's Discovery Program of competitively selected solar system exploration missions with highly focused scientific goals. NASA's Marshall Space Flight Center in Huntsville, Alabama, manages the Discovery Program for the agency's Science Mission Directorate in Washington. NASA's Jet Propulsion Laboratory, a division of the Caltech in Pasadena, California, manages InSight for the NASA Science Mission Directorate. Lockheed Martin Space Systems, Denver, built the spacecraft.

Credit: NASA/JPL-Caltech/Lockheed Martin


Hoisting NASA's InSight Lander
Date: 28 Aug 2017

The Mars lander portion of NASA's InSight spacecraft is lifted from the base of a storage container in preparation for testing, in this photo taken June 20, 2017, in a Lockheed Martin clean room facility in Littleton, Colorado.

The InSight mission (for Interior Exploration using Seismic Investigations, Geodesy and Heat Transport) is scheduled to launch in May 2018 and land on Mars Nov. 26, 2018. It will investigate processes that formed and shaped Mars and will help scientists better understand the evolution of our inner solar system's rocky planets, including Earth.

InSight is part of NASA's Discovery Program of competitively selected solar system exploration missions with highly focused scientific goals. NASA's Marshall Space Flight Center in Huntsville, Alabama, manages the Discovery Program for the agency's Science Mission Directorate in Washington. NASA's Jet Propulsion Laboratory, a division of the Caltech in Pasadena, California, manages InSight for the NASA Science Mission Directorate. Lockheed Martin Space Systems, Denver, built the spacecraft.

Credit: NASA/JPL-Caltech/Lockheed Martin


Cruise Stage of NASA's InSight Spacecraft

Lockheed Martin spacecraft specialists check the cruise stage of NASA's InSight spacecraft in this photo taken June 22, 2017, in a Lockheed Martin clean room facility in Littleton, Colorado. The cruise stage will provide vital functions during the flight from Earth to Mars, and then will be jettisoned before the InSight lander, enclosed in its aeroshell, enters Mars' atmosphere.

The InSight mission (for Interior Exploration using Seismic Investigations, Geodesy and Heat Transport) is scheduled to launch in May 2018 and land on Mars Nov. 26, 2018. It will investigate processes that formed and shaped Mars and will help scientists better understand the evolution of our inner solar system's rocky planets, including Earth.

InSight is part of NASA's Discovery Program of competitively selected solar system exploration missions with highly focused scientific goals. NASA's Marshall Space Flight Center in Huntsville, Alabama, manages the Discovery Program for the agency's Science Mission Directorate in Washington. NASA's Jet Propulsion Laboratory, a division of the Caltech in Pasadena, California, manages InSight for the NASA Science Mission Directorate. Lockheed Martin Space Systems, Denver, built the spacecraft.

Credit: NASA/JPL-Caltech/Lockheed Martin


Bench Checkout of InSight's Seismometer Instrument

The Seismic Experiment for Interior Structure (SEIS) instrument for NASA's InSight mission to Mars undergoes a checkout for the spacecraft's assembly, test and launch operations (ATLO) in this photo taken July 20, 2017, in a Lockheed Martin clean room facility in Littleton, Colorado. The SEIS was provided by France's national space agency (CNES) with collaboration from the United States, the United Kingdom, Switzerland and Germany.

The InSight mission (for Interior Exploration using Seismic Investigations, Geodesy and Heat Transport) is scheduled to launch in May 2018 and land on Mars Nov. 26, 2018. It will investigate processes that formed and shaped Mars and will help scientists better understand the evolution of our inner solar system's rocky planets, including Earth.

InSight is part of NASA's Discovery Program of competitively selected solar system exploration missions with highly focused scientific goals. NASA's Marshall Space Flight Center in Huntsville, Alabama, manages the Discovery Program for the agency's Science Mission Directorate in Washington. NASA's Jet Propulsion Laboratory, a division of the Caltech in Pasadena, California, manages InSight for the NASA Science Mission Directorate. Lockheed Martin Space Systems, Denver, built the spacecraft.

Credit: NASA/JPL-Caltech/Lockheed Martin


Mars Lander Deck of NASA's InSight Mission
Date: 28 Aug 2017

This view looks upward toward the InSight Mars lander suspended upside down. It shows the top of the lander's science deck with the mission's two main science instruments -- the Seismic Experiment for Interior Structure (SEIS) and the Heat Flow and Physical Properties Probe (HP3) -- plus the robotic arm and other subsystems installed. The photo was taken Aug. 9, 2017, in a Lockheed Martin clean room facility in Littleton, Colorado.

The InSight mission (for Interior Exploration using Seismic Investigations, Geodesy and Heat Transport) is scheduled to launch in May 2018 and land on Mars Nov. 26, 2018. It will investigate processes that formed and shaped Mars and will help scientists better understand the evolution of our inner solar system's rocky planets, including Earth.

InSight is part of NASA's Discovery Program of competitively selected solar system exploration missions with highly focused scientific goals. NASA's Marshall Space Flight Center in Huntsville, Alabama, manages the Discovery Program for the agency's Science Mission Directorate in Washington. NASA's Jet Propulsion Laboratory, a division of the Caltech in Pasadena, California, manages InSight for the NASA Science Mission Directorate. Lockheed Martin Space Systems, Denver, built the spacecraft.

Credit: NASA/JPL-Caltech/Lockheed Martin
Bron: https://insight.jpl.nasa.gov/images.cfm?IM_ID=8465&Page=1

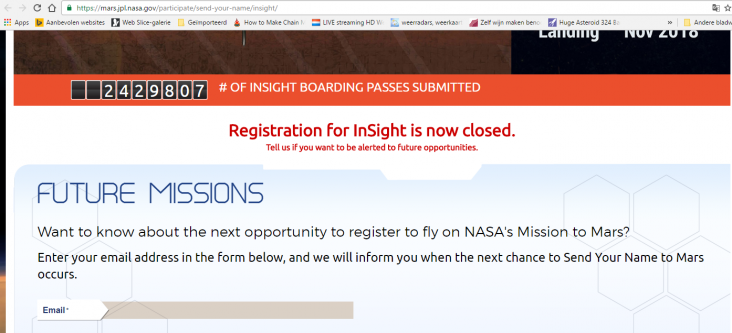

Ik ga naar Mars

Vandaag is het zover! Ik ga naar Mars, dat wil zeggen mijn naam . De lancering is om 11:05 uur Nederlandse tijd.
Voor mijn mede Marsreizigers en alle andere geïnteresseerden, is
de lancering is te volgen op :

http://www.nasa.gov/nasalive
http://www.facebook.com/nasaedgefan
http://www.ustream.tv/nasaedge
https://www.youtube.com/user/NASAedge

MarCo maakt eerste foto van de aarde als test. Afstand 1 miljoen km.

The first image captured by one of NASA's Mars Cube One (MarCO) CubeSats. The image, which shows both the CubeSat's unfolded high-gain antenna at right and the Earth and its moon in the center, was acquired by MarCO-B on May 9. Image Credit: NASA/JPL-Caltech

NASA's Voyager 1 took a classic portrait of Earth from several billion miles away in 1990. Now a class of tiny, boxy spacecraft, known as CubeSats, have just taken their own version of a "pale blue dot" image, capturing Earth and its moon in one shot.

NASA set a new distance record for CubeSats on May 8 when a pair of CubeSats called Mars Cube One (MarCO) reached 621,371 miles (1 million kilometers) from Earth. One of the CubeSats, called MarCO-B (and affectionately known as "Wall-E" to the MarCO team) used a fisheye camera to snap its first photo on May 9. That photo is part of the process used by the engineering team to confirm the spacecraft's high-gain antenna has properly unfolded.

As a bonus, it captured Earth and its moon as tiny specks floating in space.

"Consider it our homage to Voyager," said Andy Klesh, MarCO's chief engineer at NASA's Jet Propulsion Laboratory, Pasadena, California. JPL built the CubeSats and leads the MarCO mission. "CubeSats have never gone this far into space before, so it's a big milestone. Both our CubeSats are healthy and functioning properly. We're looking forward to seeing them travel even farther."

The MarCO spacecraft are the first CubeSats ever launched to deep space. Most never go beyond Earth orbit; they generally stay below 497 miles (800 kilometers) above the planet. Though they were originally developed to teach university students about satellites, CubeSats are now a major commercial technology, providing data on everything from shipping routes to environmental changes.

The MarCO CubeSats were launched on May 5 along with NASA's InSight lander, a spacecraft that will touch down on Mars and study the planet's deep interior for the first time. InSight, short for Interior Exploration using Seismic Investigations, Geodesy and Heat Transport, will attempt to land on Mars on Nov. 26. JPL also leads the InSight mission.

Mars landings are notoriously challenging due to the Red Planet's thin atmosphere. The MarCO CubeSats will follow along behind InSight during its cruise to Mars. Should they make it all the way to Mars, they will radio back data about InSight while it enters the atmosphere and descends to the planet's surface. The high-gain antennas are key to that effort; the MarCO team have early confirmation that the antennas have successfully deployed, but will continue to test them in the weeks ahead.

InSight won't rely on the MarCO mission for data relay. That job will fall to NASA's Mars Reconnaissance Orbiter. But the MarCOs could be a pathfinder so that future missions can "bring their own relay" to Mars. They could also demonstrate a number of experimental technologies, including their antennas, radios and propulsion systems, which will allow CubeSats to collect science in the future.

Later this month, the MarCOs will attempt the first trajectory correction maneuvers ever performed by CubeSats. This maneuver lets them steer towards Mars, blazing a trail for CubeSats to come.

For more information about MarCO, visit:

https://www.jpl.nasa.gov/cubesat/missions/marco.php
Bron: https://www.jpl.nasa.gov

Vandaag is het zover, Insight gaat op Mars landen!

Op 5 mei 2018 werd Insight gelanceerd met de Atlas 401 raket van AFB Vandenberg.
Vervolgens werd er ruim 55 miljoen kilometer afgelegd om bij onze buurplaneet te arriveren. En vanavond (circa 21:00 uur Nederlandse tijd) is het dan zover. Insight gaat landen op Mars op het Elysium Planitia.
Insight zal met een snelheid van ruim 20.000 km/u de Marsatmosfeer binnendringen in een hoek van 12 graden. Het hitteschild krijgt temperaturen te verduren van wel 1000 graden Celcius (meer info zie artikel hieronder, of de eerdere berichten over Insight op deze pagina).
Insight heeft seismografen aan boord die dieper gaan dan hun voorgangers om zowel Marsbevingen te registreren alsook de impact van meteorietinslagen. Daarbij zijn ook de namen van 2.429.807 mensen op een chip gezet. Deze chip is aan boord van Insight. Deze mensen (ja ik ook!) zullen allemaal een beetje Marsmannetjes en Marsvrouwtjes worden.

Wil je de landing live volgen, zie de links hieronder:
https://www.youtube.com/user/JPLraw/live
https://mars.nasa.gov/insight/timeline/landing/watch-online/
http://www.ustream.tv/NASAJPL2
https://www.nasa.gov/multimedia/nasatv/index.html#public

VEEL PLEZIER!!


NASA's InSight-missie landt op Mars, maar hoe werkt dat?

De InSight van ruimtevaartorganisatie NASA zal maandag aankomen op Mars, nadat die op 5 mei dit jaar werd gelanceerd. De InSight bestaat uit een Marslander met meerdere meetinstrumenten die grondonderzoek zullen uitvoeren op de 'Rode Planeet', mits de landing slaagt. Maar hoe land je een ruimtevoertuig op ruim 55.7 miljoen kilometer van de aarde?

Van alle landingen op Mars tot nu toe, is 40 procent gelukt. Bijvoorbeeld alle Europese pogingen zijn mislukt. De landingen zijn risicovol, omdat ze uit veel verschillende stappen bestaan en elke stap perfect moet verlopen.

Sinds de lancering in mei, vliegt de InSight richting Mars via de zogenoemde Cruise Stage. De lander zelf zit verpakt in een hittebestendig schild en een huls. Dit schild moet InSight beschermen tegen de ruim 1.000 graden Celsius waar het ruimtevoertuig tijdens de val door de atmosfeer mee te maken krijgt.

De Cruise Stage is een systeem dat aan de huls van de lander vastzit en wordt aangedreven door zonnepanelen. Het systeem verzorgt onder meer de communicatie met de aarde en de navigatie naar de doelplaneet. Zodra de InSight dicht genoeg bij Mars is, koppelt de Cruise Stage los en gaat de huls met de InSight richting de oppervlakte.

Lander moet in juiste hoek door atmosfeer

De volgende stap is het binnengaan van de atmosfeer. De lander beweegt met een snelheid van bijna 21.000 kilometer per uur en moet de atmosfeer doorkruisen met een hoek van 12 graden.

Als de hoek scherper is, doorkruist de lander de atmosfeer niet en gaat die terug de ruimte in. Als de hoek stomper is, verbrandt de lander in de atmosfeer.

Zodra het ruimtevoertuig de atmosfeer betreedt, moet het nog ruim 128 kilometer vallen tot het op de oppervlakte komt. De InSight moet in minder dan twee minuten afremmen van ongeveer 20.000 kilometer per uur naar ongeveer 1.600 kilometer per uur.

Op ongeveer 16 kilometer hoogte boven het oppervlak, activeert de parachute. Vijftien seconden nadat de parachute uitklapt, wordt het hitteschild door middel van zes kleine explosies van het ruimtevoertuig afgeblazen.

Kort na wegblazen hitteschild klapt landingsgestel uit

Tien seconden na het wegblazen van het hitteschild, klapt het landingsgestel van de lander uit. Op ruim 1,5 kilometer hoogte laat de lander los van de huls en de parachute en valt deze op eigen kracht naar Mars.

De motoren van de lander gaan aan en het ruimtevoertuig moet uit de buurt van de huls met parachute bewegen, om niet geraakt te worden. Ten slotte moeten de motoren direct uit als de InSight de oppervlakte van Mars raakt. Als de motoren te laat uitgaan, valt het toestel om.

InSight landt op 'grootste parkeerplaats van Mars'

InSight zal landen op een vlakte met de naam Elysium Planitia, een gebied waar onderzoekers verwachten geen rotsen of heuvels aan te treffen. Dit is belangrijk, omdat er dan geen obstakels zijn die de landing van de InSight kunnen dwarsbomen. NASA noemt Elysium Planitia ook wel de "grootste parkeerplaats van Mars".

Ook ligt Elysium Planitia dicht bij de evenaar, zodat er te allen tijde genoeg zonlicht is om de InSight van stroom te voorzien. Onderzoekers kijken verder naar de afstand van het oppervlak tot de atmosfeer, om ervoor te zorgen dat InSight genoeg ruimte heeft om vaart te minderen en veilig te landen.

Ten slotte bestaat de grond van Elysium Planitia niet uit massief rots, zodat de warmtesensor van de InSight zich makkelijk in de bodem kan boren.

Na landing stelt de InSight instrumenten zelf op

Zodra de InSight veilig is geland, zal die zijn eigen instrumenten opstellen voor onderzoek. Eerst klapt de InSight zijn zonnepanelen uit en gaat een camera aan die panoramabeelden van de vlakte van Elysium Planitia maakt. Vervolgens wordt een grijparm geactiveerd die de apparatuur van InSight op de grond neerzet.

Eerst wordt een seismograaf neergezet, die bevingen in de grond detecteert. Hier plaatst de arm vervolgens een wind- en temperatuurschild overheen, om te voorkomen dat de metingen van het apparaat worden verstoord.

Tenslotte zet de InSight een warmtesonde neer, die zich in vier tot zes weken tijd 5 meter diep in de grond boort. Deze sonde zal meten hoe hitte wordt uitgestoten vanaf de kern van Mars.

De InSight beschikt ook over apparatuur die niet opgesteld hoeft te worden, zoals een meter die bekijkt hoe Mars 'wiebelt' in zijn baan om de zon. Dit kan ook informatie geven over de opbouw van de planeet.

InSight vloog samen met twee satellieten naar 'Rode Planeet'

De Insight werd samen met twee kleine satellieten gelanceerd. De MarCO-A en MarCO-B zijn niet groter dan 40 centimeter. MarCO-A en MarCO-B worden ook wel 'Wall-E' en 'EVE' genoemd, naar de twee hoofdpersonages uit de Pixar-animatiefilm Wall-E.

Dit omdat de satellieten zich voortduwen met een gas dat ook wordt gebruikt in brandblussers. In de film gebruikt de robot Wall-E een brandblusser om zich in de ruimte voort te duwen.

De data van de metingen worden direct naar de aarde verzonden, maar ook via de experimentele MarCO-satellieten. NASA test hiermee de mogelijkheden om satellieten in een baan om andere planeten dan de aarde te sturen.
Bron: https://www.nu.nl/

Hierbij de livestream:

https://www.nasa.gov/multimedia/nasatv/index.html#public
  | Gewijzigd: 26 november 2018, 18:17 uur, door Joyce.s

Insight's zonnepanelen zijn uitgeklapt en functioneren.

Sol 1 (Marsdag 1):
Insight heeft signalen afgegeven, dat de zonnepanelen zijn uitgeklapt en het zonlicht opvangen. Dit was een belangrijke stap in de missie, want indien de batterijen niet opgeladen worden..heb je ook geen missie.

De panelen zijn elk 2,2 meter breed als ze geopend zijn. Insight - met geopende panelen - is ongeveer net zo groot als een Cabrio uit de jaren '60.
Op een zonnige dag leveren ze 600-700 watt op (bij ons thuis net genoeg om een blender op te laten lopen), maar als er stof op de panelen komt te liggen - wat geregeld voor zal komen - dan leveren de panelen op zijn minst 200- 300 watt op.

De panelen zijn van dezelfde soort als de panelen die bij de Phoenix lander zijn gebruikt, alleen zijn ze iets groter. Dit om meer vermogen te krijgen voor de instrumenten aan boord van Insight en hun missie én Insight moet 1 Marsjaar blijven functioneren (dat komt overeen met 2 jaar op aarde).

In de komende dagen zal de robotarm worden uitgeklapt en zullen er foto's worden gemaakt om te kijken waar de apparatuur op het Marsoppervlak geplaatst zullen gaan worden. Het zal 2 - 3 maanden duren voordat deze operationeel zijn en wij de eerste data ervan zullen ontvangen.

In de tussentijd zal Insight met de weersensoren en de magnetometer metingen gaan verrichten van zijn landingsplaats en nieuwe thuis: Elysium Planitia

Bron: https://mars.nasa.gov/

Citaat van wappy, woensdag 28 november 2018, 14:57 uur Zo hee we zijn er hoor wat een uitzicht toch ook, alleen wel erg stil hoor.
ja ik was even sprakeloos van het uitzicht, maar pak een bakje leut en een koekje erbij en dan gaan we eens gezellig aan de babbel. heb je nog pinda's over van de reis?
